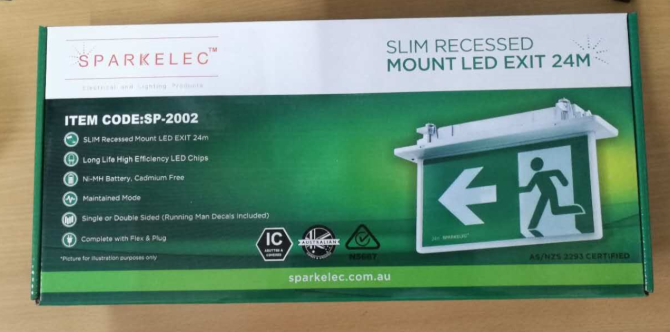

SPARKELEC RECESSED MOUNT SLIMLINE LED Exit Sign Gen2 LiFEPO4 Lithium Battery - SP2002WH

SPARKELEC RECESSED MOUNT SLIMLINE LED Exit Sign Gen2 LiFEPO4 Lithium Battery - SP2002WH

*RECESSED MOUNT*

BOX  QTY = 4 PCS (Check QTY Discount Tab)

*AS2293 TESTED/CERTIFIED BY NEMKO & SAA APPROVALS QLD (SEE ATTACHMENTS TAB)

SLIMLINE* Double Sided Wall & Ceiling Mount Exit

- Running Man & Running Man Arrowed Decals Included

- CUT-OUT 310mm x 65mm (LARGER ADAPTOR PLATE FOR LARGER CUTOUT ALSO AVAILABLE SEARCH SP200ADP)

LED:  16pcs SMD2835 LEDs

Effective Range: 24M

Lamp Protection: Over charge and discharge protection

Charging current: 30mA

Convert voltage: 150-180V AC

Discharging Current: 160mA

Discharge Duration: 3 Hours

Battery Specs: 3.2V 1500mAh Lithium LiFePO4 Battery

Compliant to AS2293.3 / AS2293 CERTIFIED

NOTE

1. Please Read Installation Instructions before connecting to mains supply,

ensure no polarities are reversed

2. Switch off mains supply before replacing

3. Fitting MUST BE Wired to a Permanent Active Circuit, otherwise warranty is AUTOMATICALLY VOID

*WIRING/INSTALLATION DIAGRAM ATTACHED - PLEASE SEE ATTACHMENTS TAB ABOVE
