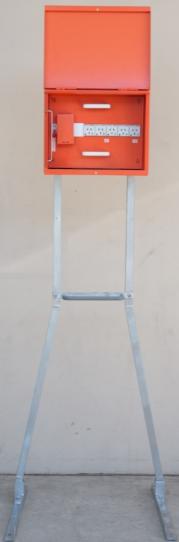

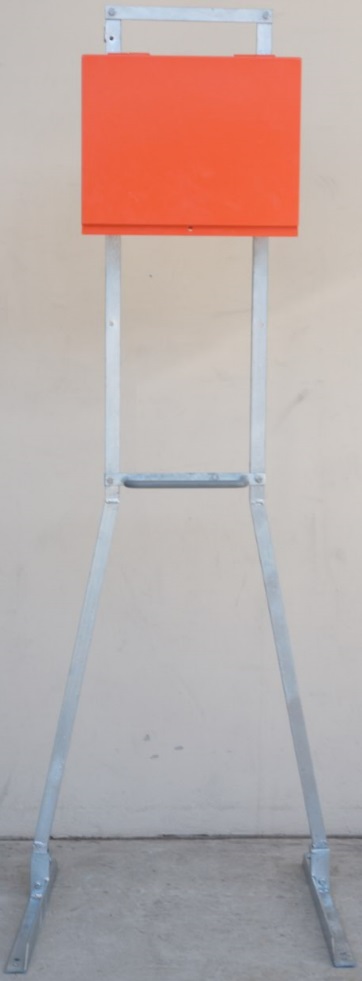

SPARKELEC Temporary Site Board – TB-100 SERIES
PATENTED PRODUCT - 5 YEARS WARRANTY ON PRODUCT
AUSTRALIA/NZ INNOVATION PATENT NO 2017272328
CHECK IMAGE GALLERY FOR PAST & CURRENT PROJECTS USED BY OUR MAJOR CUSTOMERS
Features
- Single Phase 100A Main Switch
- DIN Rail Mount Switchgear
- 2 x 20A RCBO Double Pole Circuit Breakers (Non-Polarised)
- Neutral and Earth Links - 16mm²
- 4 x 10A DIN Rail Mount GPO’s with LED Indicator Light
- 1 x 15A DIN Rail Mount GPO’s with LED Indicator Light
- Spare Circuit Breaker Poles
- Robust Hi Visibility 410mm x 310mm x 160mm Powder Coated Steel Enclosure.
- IP54 Degree of Protection with Removable Double Hinge Lid
- Strong 1700mm Hot Dip Gal Stand – Easy assembly and disassembles to flat pack for storage
- Steel Lockable RCD Cover and Main Enclosure
- Internal Mains Cable ‘Secure Tie Points’
- Includes - Height adjustable Insulated Lead Stand
- Includes - Insulated Lead Tie Bar
Compliance
- AS/NZS 3012 Certified & Approved
Additional/Optional Parts & Addons
- Site Board Sold with Stand or Supplied Separately
- Additional Insulated Lead Stands & TIE Bars Available
|
Part Number
|
Item Description:
|
|
TBLIGHTR
|
Additional Light Rack (For Light Mount)
|
|
DPDGPO10A
|
Din Rail GPO 10A
|
|
DPDGPO15A
DPDGPO20A
|
Din Rail GPO 15A
Din Rail GPO 20A
|
|
TB-STAND
|
Hot Dipped Galvanised Board Stand
|
|
TBBAR
|
Insulated TIE Bar
|
