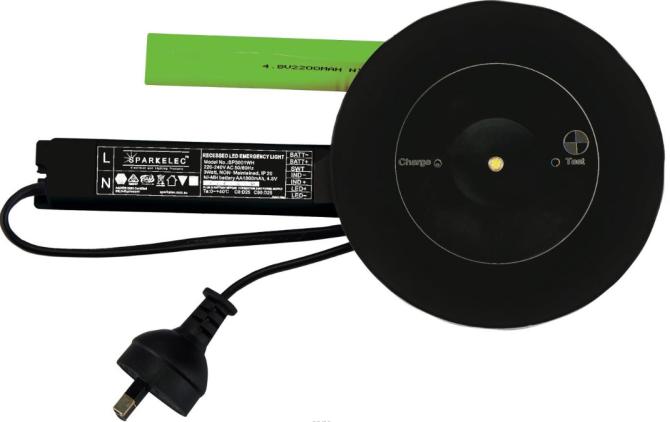

SPARKELEC D40 3W LED Emergency Light *BLACK* - SP3001BK* ON SPECIAL

SPARKELEC D40 3W LED Emergency Light - SP3001BK ON SPECIAL

*BLACK*

- Recess Mount, D40 Classification

BOX QTY = 20 PCS / CHECK QTY DISCOUNT TAB FOR QTY DISCOUNTS

2 DISH SOLUTION

*AS2293 TESTED/CERTIFIED BY NEMKO & SAA APPROVALS QLD (SEE ATTACHMENTS TAB)

Features

- Intelligent Automatic Recharging Function

- Constant Current Mode

- 3 Hour Emergency Operation

- LED Charge Status Display

- Deep Discharge Protection

- Test Switch With Self-Test Function

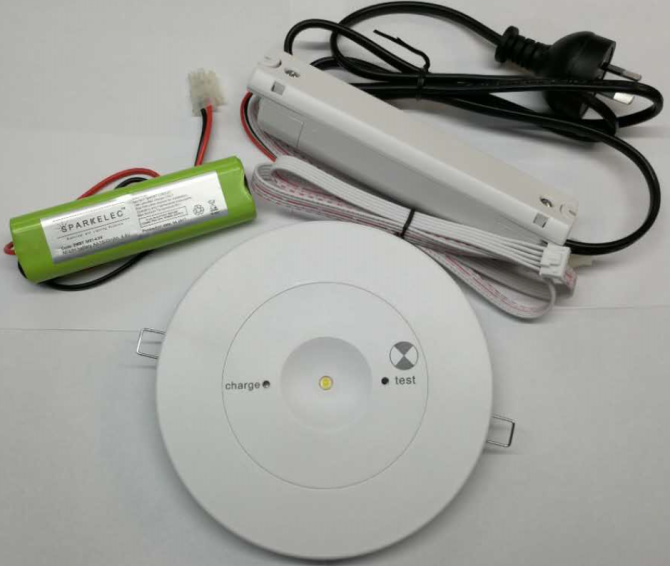

- Complete with Flex & Plug & Easy Installation

- Emergency Classification D40,C0:D40 C:90:D40

- Cut-Out Size: Ø75mm

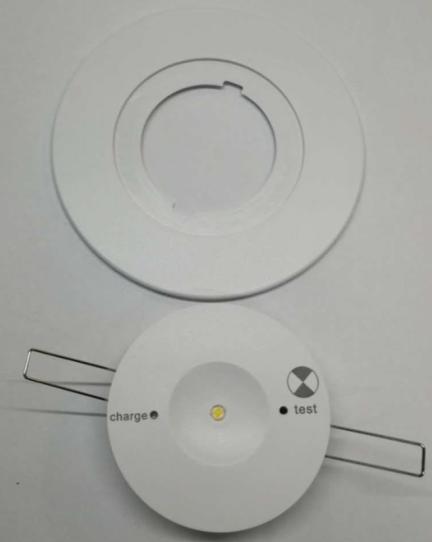

- Accessories: Adapter To Fit Existing Cutout Size Between Ø90 AND Ø120mm

- IC ABUTTED

Technical Information

Rated Power Supply: 220v to 240V 50/60hz

Charging Current: 90mA

Discharging Current: 500mA

Recharge Hours: 16 Hours

LED Power: 3 Watt High Efficiency LED CHIP

Performance Figure Measures: 40c

Battery: 6.4v 1500mah LifePO4

LED Indicator: Red Indicator

NOTE

1. Please Read Installation Instructions before connecting to mains supply,

ensure no polarities are reversed

2. Switch off mains supply before replacing

3. Fitting MUST BE Wired to a Permanent Active Circuit, otherwise warranty is AUTOMATICALLY VOID

*WIRING/INSTALLATION DIAGRAM ATTACHED - PLEASE SEE ATTACHMENTS TAB ABOVE
