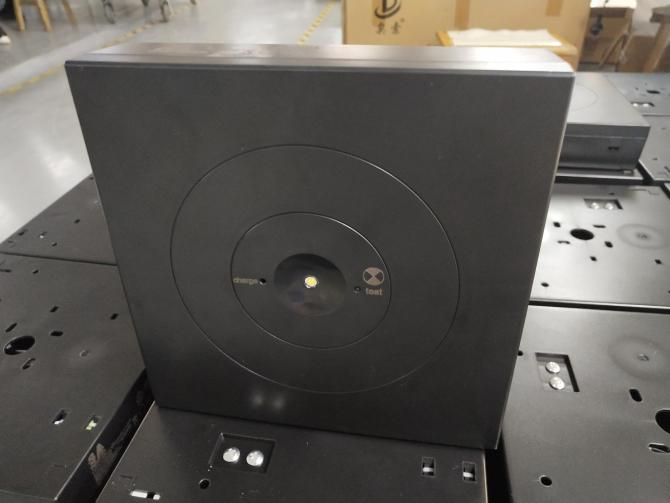

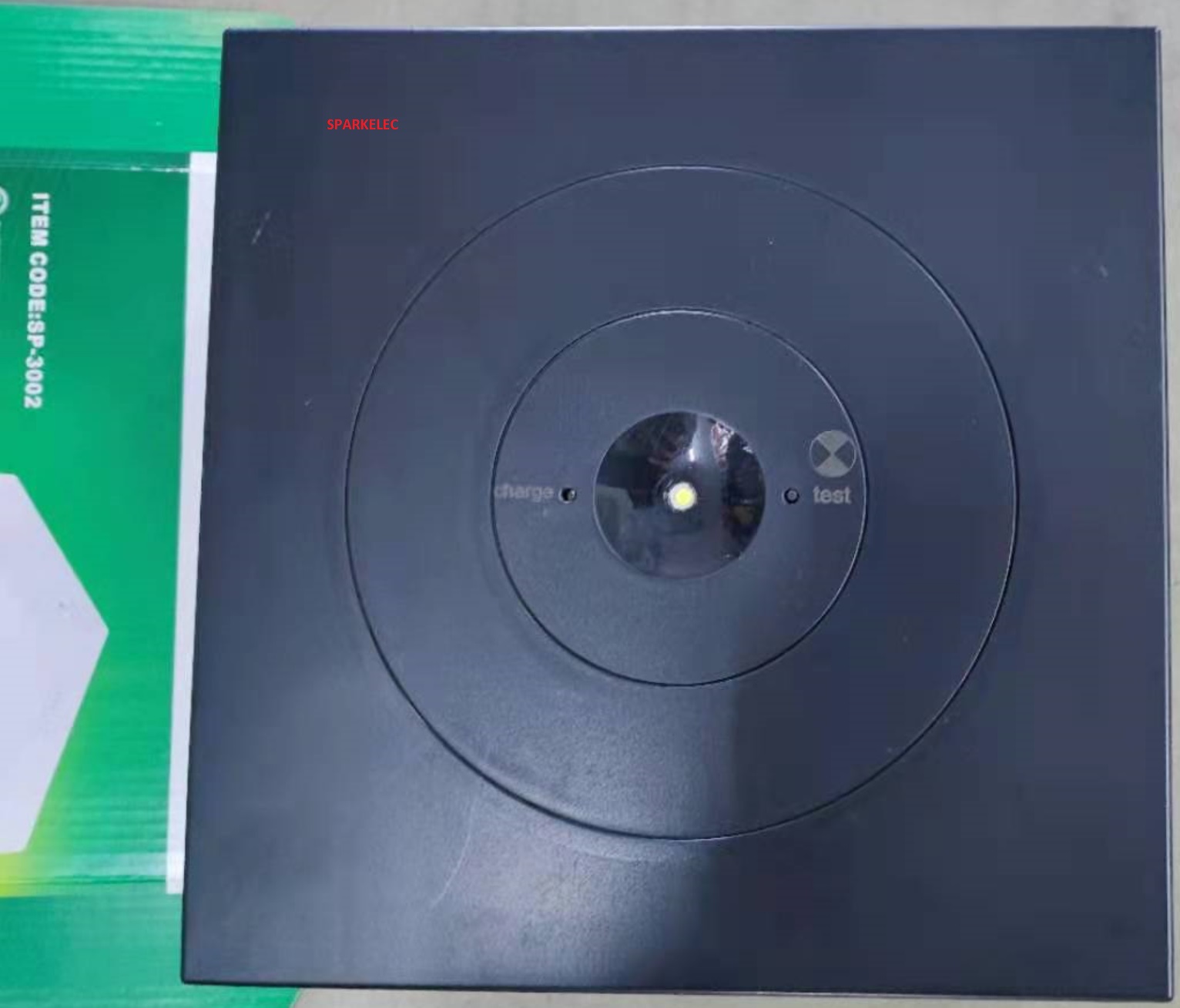

SPARKELEC Surface Mount D40 4W LED Emergency Light *BLACK* - SP3002BLACK

SPARKELEC Surface Mount D40 4W LED Emergency Light *BLACK* - SP3002BLACK

BOX QTY = 8 PCS / CHECK QTY DISCOUNTS TAB FOR QTY DISCOUNTS

*AS2293 APPROVED - TESTED/CERTIFIED BY NEMKO & SAA APPROVALS QLD (SEE ATTACHMENTS TAB)

Features

- Intelligent Automatic Recharging Function

- Constant Current Mode

- 3 Hour Emergency Operation

- LED Charge Status Display

- Deep Discharge Protection

- Test Switch With Self-Test Function

- Complete with Flex & Plug & Easy Installation

- Emergency Classification D25

Technical Information

Rated Power Supply: 220v to 240V 50/60hz

Charging Current: 90mA

Discharging Current: 500mA

Recharge Hours: 16 Hours

LED Power: 3 Watt

Performance Figure Measures: 25c

Battery: 4.8V 1800mah Ni-MH

LED Indicator: Red Indicator

NOTE

1. Please Read Installation Instructions before connecting to mains supply,

ensure no polarities are reversed

2. Switch off mains supply before replacing

3. Fitting MUST BE Wired to a Permanent Active Circuit, otherwise warranty is AUTOMATICALLY VOID

*WIRING/INSTALLATION DIAGRAM ATTACHED - PLEASE SEE ATTACHMENTS TAB ABOVE
